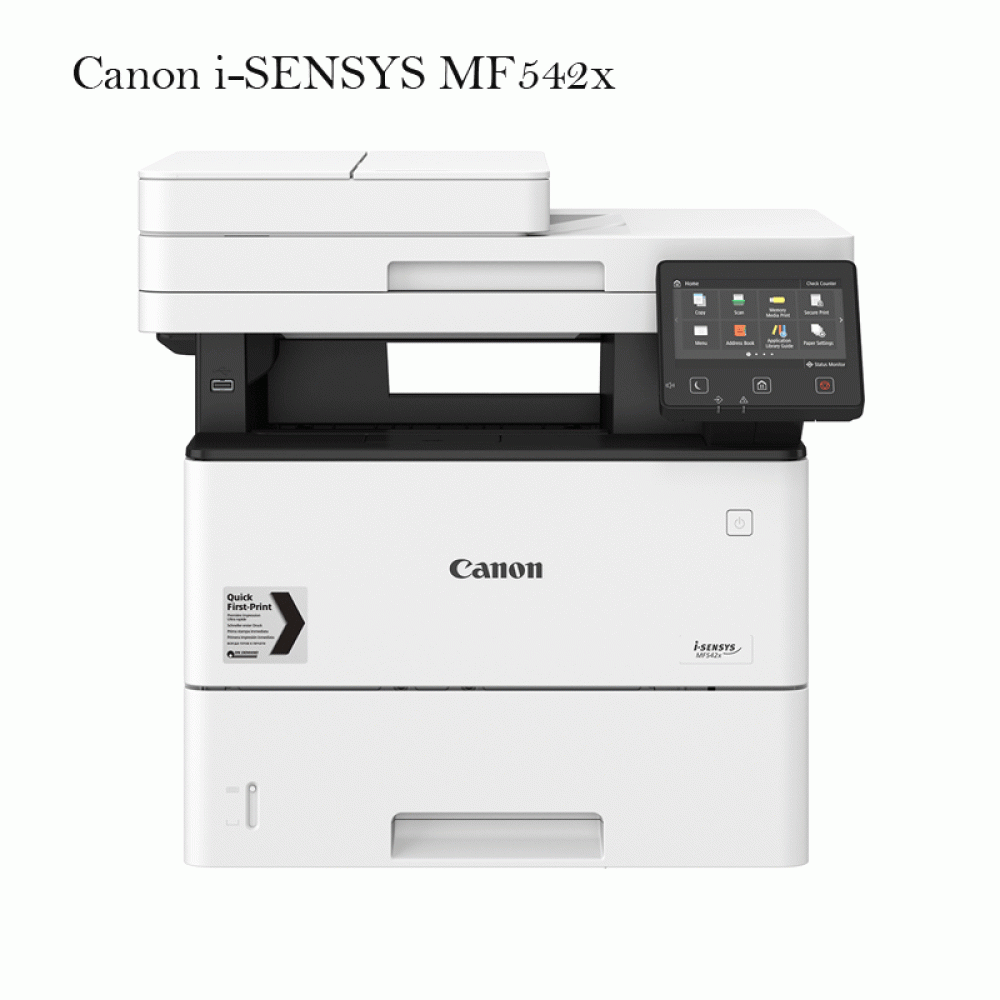

Canon i-SENSYS MF542 (3513C004AA)

High-performance black and white laser printer (print, scan and copy functionality).

Printer Engine

Print speed

• Single sided: Up to 43 ppm (A4) / Up to 65.2 ppm(A5-Landscape)
• Double sided: Up to 36.0 ipm (A4)

Features:

• Printing method: Monochrome laser beam printing
• Print Resolution: 600 x 600 dpi
• Print Quality with Image Refinement Technology: Up to 1200 x 1200 dpi
• Warm-up Time: Approx. 14 seconds or less from power on
• First Page Out Time: Approx: 5.7 seconds or less
• Printer Languages: UFRII, PCL 5e1, PCL6, Adobe® PostScript
• Fonts: 93 PCL fonts / 136 PostScript fonts
• Printing Margin: 5 mm-top, bottom, left and right / 10 mm-top, bottom, left and right (Envelope)
• Toner saver mode: Yes

Advanced printing features

• Secure Print
• Print from USB memory key (JPEG/TIFF/PDF)
• Barcode Print
• Google Cloud Print Ready
• iOS: AirPrint, Canon PRINT Business app
• Android; Mopria certified, Canon PRINT Business app, Canon Print Service Plug-in

Copier

Copy Speed

• Single sided (A4): Up to 43 ppm
• Double sided (A4): Up to 34.4 ipm

First Copy Output Time (FCOT)

• ADF (A4): Approx. 6.4 seconds or less
• Platen (A4): Approx. 6.3 seconds or less

• Copy resolution: Up to 600 x 600 dpi
• Control Modes: Text, Text/Photo (Default),Text/Photo (High Quality), Photo
• Double sided copying: 2-sided to 2-sided (Automatic)
• Multiple Copy: Up to 999 copies
• Reduction/Enlargement: 25-400% in 1% increments

Other features

• Frame Erase, Collate, 2 on 1, 4 on 1, ID card copy

Scanner

• Type: Colour
• Scan Resolution: Optical: Up to 600 x 600 dpi / Enhanced: Up to 9600 x 9600 dpi
• Scan speed:

• Single sided mono: 38ipm (300x600dpi)
• Single sided colour: 13ipm (300x600dpi)
• Double sided mono: 70ipm (300x600dpi)
• Double sided colour: 26ipm (300x600dpi)
• Colour scanning depth: 24 bit/24 bit (input/output)
• Greyscales: 256 levels
• Compatibility: TWAIN , WIA, ICA
• Max. scan width: 216mm
• Scan to E-mail: TIFF/JPEG/PDF/Compact PDF/Searchable PDF/Encrypted PDF3/PDF (Digital signature)4
• Scan to Cloud: TIFF/JPEG/PDF/PNG5
• iFAX: ITU-T.37


Fax

• Modem Speed: 33.6 Kbps (Up to 3 seconds/page6)
• Receive mode: Fax only, Fax/Tel Auto Switch, Answer Mode, Manual
• Fax resolution: Standard: 200 x 100 dpi / Fine: 200 x 200 dpi / Super fine: 200 x 400 dpi / Ultra fine: 400 x 400 dpi
• FAX memory: Up to 512 pages7
• Speed dials: Up to 281dials
• Group dials/destinations: Max. 299 dials / Max. 299 destinations
• Sequential broadcast: Max. 310 destinations
• Memory backup: Permanent fax memory backup (Backup with flash memory)
• Double sided faxing: Yes (Transmit and Receive)

Other features

Fax Forwarding, Dual Access, Remote Reception, PC Fax (TX only) DRPD, ECM, Auto Redial, Fax Activity Reports,  Fax Activity Result Reports,  Fax Activity Management Reports

Media Handling

Scanner Type: Platen, 2-sided ADF (single pass)

Paper input (Standard):

• 550-sheet cassette
• 100-sheet multi-purpose tray
• 50-sheet ADF

Paper input (Option): 550-sheet cassette x 3

Paper output: 150-sheet

Media types: Plain paper, Recycled paper, Heavy Paper, Thin paper, Label, Post card, Envelope

Media sizes: Cassette (Standard and optional) - A4, A5, A5 (Landscape), A6, B5, Legal, Letter, Executive, Statement, OFFICIO, B-OFFICIO, M-OFFICIO, GLTR, GLGL, Foolscap, 16K, Custom sizes: Min. 105 x 148 mm  Max. 216.0 x 355.6 mm.

Multi-purpose tray: A4, A5, A5 (Landscape), A6, B5, Legal, Letter, Executive, Statement, OFFICIO, B-OFFICIO, M-OFFICIO, GLTR, GLGL, Foolscap, 16K, Postcard, Indexcard, Envelope (COM10, Monarch, C5, DL), Custom sizes: Min 76.2 x 127 mm  Max. 216.0 x 355.6 mm.

ADF: A4, A5, A6, B5, Legal, Letter, Statement, Custom sizes: Min. 105 x 128 mm  Max 215.9 x 355.6 mm

Media weights:

• Cassette (standard and optional): 60 to 120 g/m²
• Multi-purpose tray: 60 to 199 g/m²
• ADF: 50 to 105 g/m²

Double-Sided Printing

A4, Legal, Letter, OFFICIO, B-OFFICIO, M-OFFICIO, Foolscap

Custom size - Min. 210 x 279.4 mm Max. 216.0 x 355.6 mm 60 to 120 g/m2

Interface & Software

Interface type: USB 2.0 Hi-Speed, 10BASE-T/100BASE-TX/1000Base-T, Wireless 802.11b/g/n, Wireless Direct Connection

Operating System compatibility:

• Windows® 10 / Windows® 8.1 / Windows® 7 / Server® 2019 / Server® 2016 / Server® 2012R2 / Server® 2012 / Server® 2008R2 / Server® 2008
• Mac OS X version 10.9.5 & up / Mac OS 10.14
• Linux8

Network protocols

• Print:    LPD, RAW, Port9100, IPP, IPPS, WSD (IPv4,IPv6)
• Scan:    Email, SMB, WSD-Scan(IPv4, IPv6), FTP-Scan, iFAX
• TCP/IP Application Services:
•    Bonjour(mDNS), HTTP, HTTPS, POP before SMTP (IPv4,IPv6)
•    DHCP, ARP+PING, Auto IP, WINS (IPv4)
•    DHCPv6 (IPv6)
• Management:    SNMPv1, SNMPv3 (IPv4,IPv6)
• Security (wired): IP/Mac address filtering, IEEE802.1X, SNMPv3, SSL (HTTPS, IPPS)
• Security (wireless): WEP(64/128 bit), WPA-PSK(TKIP/AES), WPA2-PSK(AES)
• Infrastructure Mode: WEP(64/128 bit), WPA-PSK(TKIP/AES), WPA2-PSK(TKIP/AES)
• Access Point Mode: WPA2-PSK(AES)

Software and printer management

• MF Scan Utility,
• Remote User Interface (RUI),
• Department ID Management,
• Toner Status Tool,
• iW Management Console: Server-based software for centralised management of a fleet of devices
• eMaintenance: embedded RDS allows remote eMaintenance services such as meter capture, automatic consumables management and remote diagnostics.
• Universal Log-in Manager / uniFLOW online / uniFLOW online Express / uniFLOW Compatibility
• Application Library

General features

• Recommended Monthly Print Volume: 2,000 - 7,500 pages per month
• Duty cycle: Max. 150,000 pages per month
• Processor Speed: 800MHz x 2
• Memory: 1GB
• Control Panel: 12.7 cm LCD Colour Touch Screen

• Dimensions with trays (W x D x H)

• MF543x: 494 mm x 464 mm x 452 mm
• MF542x: 480 mm x 464 mm x 452 mm
• Installation Space (W x D x H): 741 mm x 1,105 mm x 1,214 mm
• Weight: Approx. 19.8 Kg

Operating Environment

• Temperature: 10 to 30ºC (50 to 86ºF)
• Humidity: 20 to 80% RH (no condensation)
• Power Source: 220-240V(±10%)  50/60Hz (±2Hz)

• Power Consumption: Maximum: Approx. 1,430 W
• Standby: Approx. 13.6 W
• Sleep mode: Approx. 0.9 W
• Typical Electricity Consumption (TEC): 1.4 kWh/week (230V) 10

Noise Level:

• Sound Pressure : Active: 54 dB
• Standby: 24 dB

Sound Power12:

• Active:  72.9 dB13
• Standby: Inaudible

Consumable

Cartridges

• Cartridge 056L (5,100 pages)
• Cartridge 056 (10,000 pages)
• Cartridge 056H (21,000 pages)

Accessories / options

• Paper Feeder PF-C1 (550-sheet cassette)

• Barcode Printing Kit-E1E
• MiCard Multi (Card reader for identification with RFID or magnetic cards with uniFLOW)
• Micard Plus (Card reader for identification with RFID or magnetic cards with uniFLOW)
• MiCard Attachment Kit-B1
• Send PDF Security Feature Set-E1
• Plain Pedestal Type-V2
• Plain Pedestal Type-AB1
