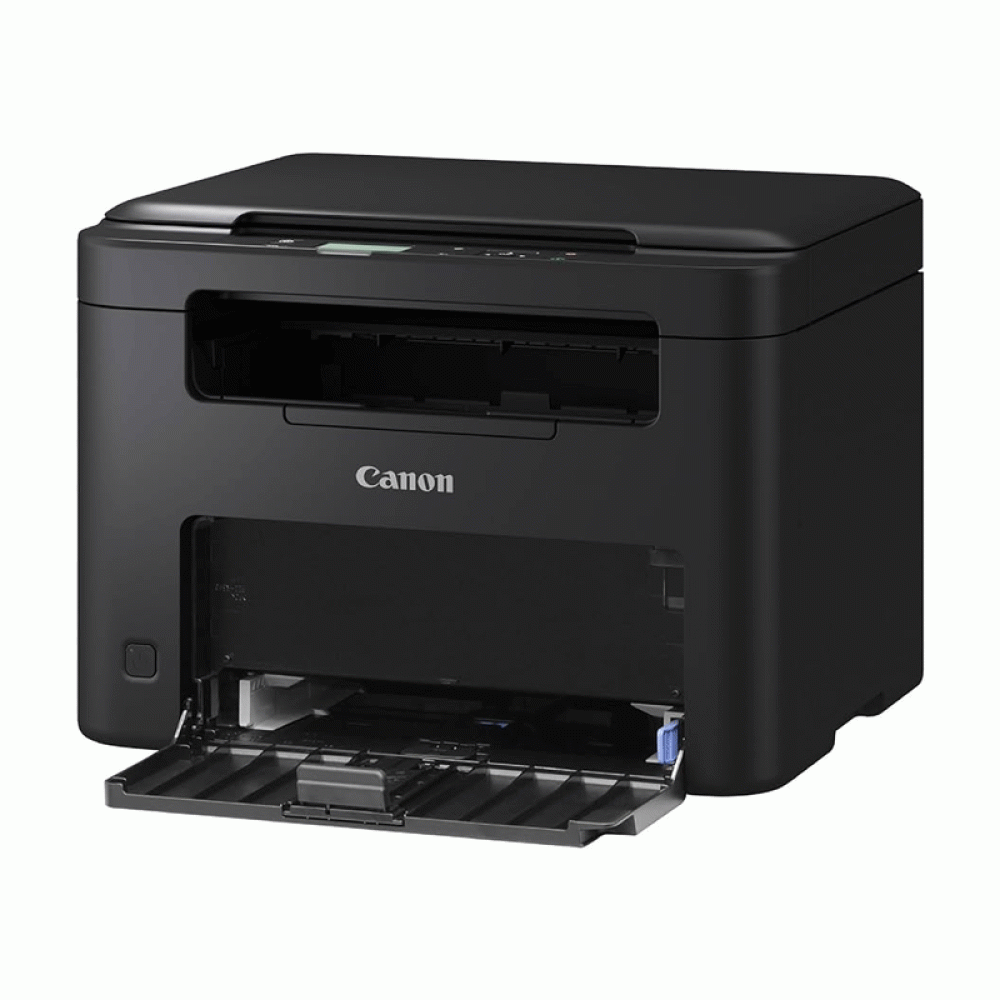

CANON i-SENSYS MF272DW (5621C013)

Multifunction Black & White Printer

General Specifications

• Machine Type: Monochrome laser
• Available Functions: Print, copy, scan

Print Specifications

• Print Speed
• Single sided: Up to 29 ppm (A4)
• Double sided: Up to 18.5 ipm (A4)
• Printing Method: Monochrome laser beam printing
• Print Resolution: Up to 2400 equivalent x 600 dpi
• Warm-up Time: Approx. 7.5 seconds or less from power on
• First-Print-Out Time:
• Approx: 5.4 seconds or less (400dpi)
• Approx: 7.1 seconds or less (600dpi)
• Printer Languages: UFRII
• Print Margins: 5 mm-top, bottom, left and right
• Toner Saver Mode: Yes
• Advanced Printing Features
• iOS: AirPrint, Canon PRINT Business app
• Android; Mopria certified, Canon Print Service Plug-in, Canon PRINT Business app
• Microsoft Universal Print support

Copy Specifications

• Copy Speed:
• Single sided: Up to 29 ppm (A4)
• Double sided: Up to 18.5 ipm (A4)
• First-Copy-Out Time: 7.6 seconds or less
• Copy Resolution: Up to 600 x 600 dpi
• Copy Modes: Text/Photo, Text/Photo (High speed), Photo, Text
• Double-Sided Copying: 1-sided to 2-sided (Automatic)
• Multiple Copies: Up to 999 copies
• Reduction / Enlargement: 25-400% in 1% increments
• Other Features: Collate Copies, 2 on 1, 4 on 1, ID card copy, Passport copy
• Scan Specifications: Standard Type
• Colour Scan Resolution
• Optical: Up to 600 x 600 dpi
• Enhanced: Up to 9600 x 9600 dpi
• Scan Speed
• Platen:
• Single sided mono: 2.7 sec/page (300x600dpi)
• Single sided colour: 3.5 sec/page (300x300dpi)
• Colour Scanning Depth: 24 bit/24 bit (input/output)
• Greyscales: 256 levels
• Compatibility: TWAIN , WIA
• Maximum Scan Width: 216mm
• Scan to PC: JPEG (single page only)
• Scan to Cloud: TIFF/JPEG/PDF/PNG1
• Media Handling: Scanner Type Flatbed
• Paper Input (Standard):
• 150-sheet cassette
• 1-sheet multi-purpose tray
• Maximum Paper Input Capacity: 151 sheets
• Paper Output: 50-sheet
• Media Types: Plain paper, Recycled paper, Heavy Paper, Thin paper, Bond paper, Label, Post card, Envelope
• Media Sizes: Cassette: A4, A5, B5, A6, Legal, Letter, Executive, Statement, OFFICIO, B-OFFICIO, M-OFFICIO, GLTR, GLGL, Foolscap, 16K, Envelop (COM10, Monarch,  DL, C5), Custom sizes: Min. 76.0 x 127 mm  Max. 216.0 x 356.0 mm
• Media Weights: Cassette: 60 to 163 g/m²
• Double-Sided Printing: Automatic

Interface & Software

• Interface Type: USB 2.0 Hi-Speed, 10BASE-T/100BASE-TX, Wireless 802.11b/g/n, Wireless Direct Connection
• Operating System Compatibility: Windows® 11 / Windows® 10 / Windows® 8.1 / Server® 2022 / Server® 2019 / Server® 2016 / Server® 2012R2 / Server® 2012
• Mac OS X version 10.12 & up, Linux
• Network Protocol
• Print: TCP/IP (LPD/Port9100/WSD)
• Pull Scan: TCP/IP, USB
• Management: SNMPv1, SNMPv3 (IPv4,IPv6)
• Security: TLS1.3, IP address filtering, IEEE802.1X, SNMPv3, SSL (HTTPS, IPPS)
• Security (wireless): IEEE802.1x
• Infrastructure Mode: WEP(64/128 bit), WPA-PSK(TKIP/AES), WPA2-PSK(TKIP/AES), WPA-EAP(AES), WPA2-EAP(AES)
• Access Point Mode: WPA2-PSK(AES)
• Software and Printer Management
• MF Scan Utility,
• Remote User Interface (RUI),
• Toner Status Tool

General Features

• Recommended Monthly Print Volume: 150 - 2,000 pages per month
• Duty Cycle: Max. 20,000 pages per month4
• Processor Speed: 1200MHz
• Memory: 256MB
• Control Panel: 5 lines B&W LCD
• Dimensions with Trays (W x D x H): 372 mm x 320 mm x 271 mm
• Installation Space (W x D x H): 372 mm x 598 mm x 526 mm
• Weight: Approx. 11.6 Kg
• Operating Environment
• Temperature: 10 to 30ºC (50 to 86ºF)
• Humidity: 20 to 80% RH (no condensation)
• Power Source: 220-240V(±10%) 50/60Hz (±2Hz)
• Power Consumption:
• Maximum: Approx. 1300 W
• Active printing: Approx. 530W
• Standby: Approx. 4.8 W
• Sleep mode: Approx. 1.0 W
• Typical Electricity Consumption (TEC): 0.23 kWh/week5
• Noise Levels
• Sound Pressure:
• Active: Simplex 50 dB / Duplex 51 dB
• Standby: Inaudible
• Sound Power:
• Active:  69.3 dB or less
• Standby: N/A

Consumables

Cartridges

• Cartridge 071 (1,200 pages)
• Cartridge 071H (2,500 pages)
